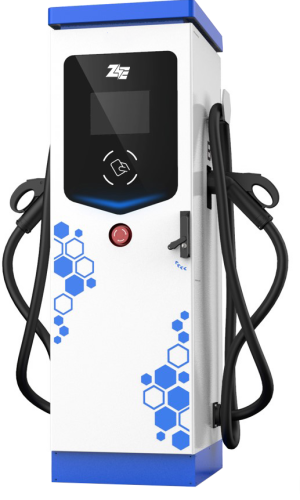

DC Fast Charging Station
2*60KW 2*90KW - DC
Internal Protection
DC isolation monitoring, DC side hall sensor, load balance management and emergency stop.
Smart Control
Wi-Fi/4G/Ethernet OCPP Protocol Smart Charging Application
Strength
7″ LCD Color touch screen, multi-language option, impact resistance and anti-corrosion.
Universal
Suitable for all kinds of electric cars. 2 CCS2 connectors up to 180 kW.
Suitable for commercial and public charging stations. It has the capacity to charge 2 vehicles simultaneously. It may be preferred by electric vehicle infrastructure operators and service providers.
Tech Specs
DC Fast Charging Station
| Power Specifications | |||
| Model Number | AN-D60KW-F | AN-D120KW-F | AN-180KW-F |
| AC Power Input Rating | 400VAC(3-Phase) | 400VAC(3-Phase) | 400VAC(3-Phase) |
| Nominal Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Input Current Range | 0~110A | 0~220A | 0~330A |
| Output Voltage | 200~1000V DC | 200~1000V DC | 200~1000V DC |
| Output Current | 0~200A*2 | 0~200A*2 | 0~200A*2 |
| Output Power | 30kW*2 | 60kW*2 | 90kW*2 |
| Connector Type | CCS2 5m cable*2 | CCS2 5m cable*2 | CCS2 5m cable*2 |
| User Interface & Control | |||
| Charge Control | Plug and Charge, RFID Card or APP | ||
| Indicators | RGB LED Indicators | ||
| LCD Screen | 7″ LCD Touch Screen | ||
| External Communication | Ethernet, 4G (OPTIONAL) | ||
| OCPP Protocol (Optional) | OCPP 1.63 | ||
| Emergency Stop | Yes | ||
| Electrical Parameter | |||
| Productivity | ≥95% | ||
| Power Factor | ≥0.99 @ 50%~100% Loading | ||
| THD | ≤5% @ 50~100% Loading | ||
| Fluctuation Factor | ≤ ± 0.5% | ||
| Environmental | |||
| Storage Temperature | -40 to 65°C environment | ||
| Operating temperature | -30 to 50°C environment | ||
| Cooling Method | Forced Air Cooling | ||
| Protection | |||
| RCD | AC 30mA+DC Insulation Monitoring | ||
| Measurement | DC Hall Sensor | ||
| IP Code | IP54 | ||
| Impact Protection | IK08 | ||
| Electrical Protection | Overload Protection, Overcurrent Protection, Residual Current Protection, Short Circuit Protection, Ground Protection, Surge Protection, Over/Under Voltage Protection, Over/Under Frequency Protection, Over/Low Temperature Protection, Water Level Protection | ||
| Mechanical Properties | |||
| Specifications (H×W×D, mm) | 750*630*180 | ||
| Weight | 450kg | ||
